Orbital Ball Valve

FOB Reference Price:Get Latest Price
$10.00 - $60.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
GRPT
Model Number:
GQ40Y/F/H GQ41Y/F/H
Material:
Bronze
Application:
Marine
Pressure:
Medium Pressure
Temperature of Media:
Normal Temperature
Structure:
Ball
Media:
Water
Product name:
Orbital Ball Valve
standard:
ISO9001:2000
Certificate:
CCS
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden case or as customers' requirement
Port
ShangHai
Lead Time :
Shipped in 10 days after payment

Orbital Ball Valve



Advantages

 1.Individualized design.

 2.Small fluid resistance,simple structure,light weight.

 3.Very easy cleaning &maintenance.

 4.High quality corrosion & chemical resistance.

 5.Simple installation,simple operation.




Product Description

 Ball Valve features:

a. Non-abrasion design for on off, which resolves the problem of mutual abrasion fully affecting sealing performance of sealing surface in the traditional valves.
b. Uploading construction, with which the valves on pipelines could be checked online and repaired directly. Thus the engine’s stopping could be minimized creatively to reduce the production cost.
c. Single-seat design, which resolves those problems affecting safety caused by abnormal temperature-rise of the medium in the lumen of the valve.
d. Low tensional moment design, with which the stem with structure designed specially could open or shut down with a merely small hand-wheel valve.
e. Wedge-type sealing construction. Traditionally, the valve would be sealed through the mechanical force provided by the stem to wedge-press the ball onto the valve seat. With this design, the sealing performance of the valve would never be influenced by the fluctuation of the pressure difference in pipeline. And the performance would be maintained reliably under all the operating models.
f. Self-purging construction of sealing surface. The fluid inside the pipeline would pass through evenly by 360° room, and along the sealing face on the globe body when the body leaves the seat shiningly. This design not only resolves the problem of scouring on parts on the valve seat by high-speed fluid but also washing away the piled-up matters on the surface to realize self-purging.

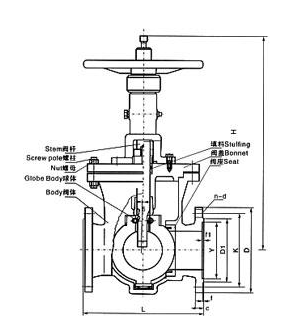

Brief figure of structure:

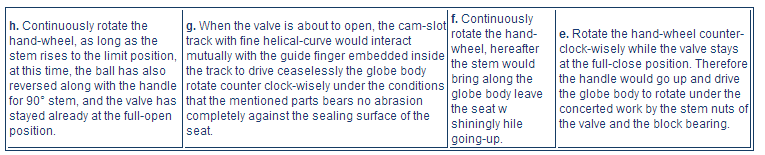

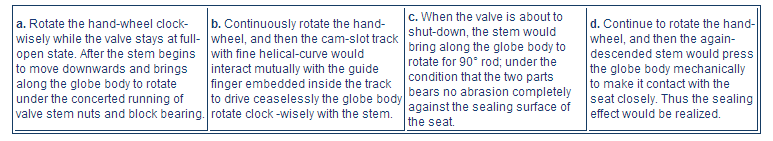

Working principle:

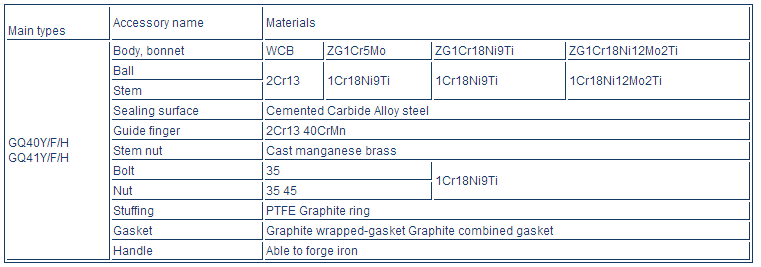

Main parts and material:

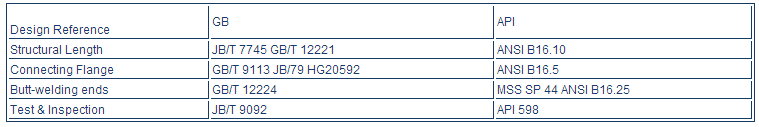

Technical specifications:

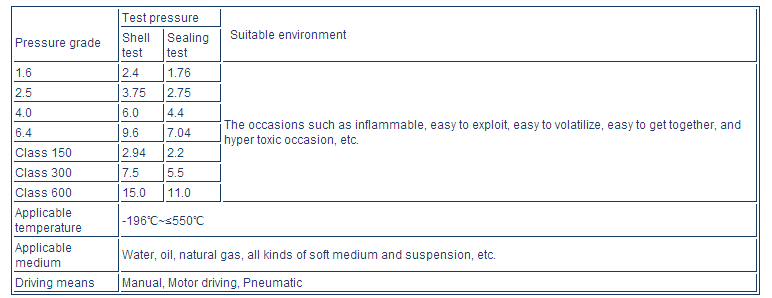

Performance specifications:

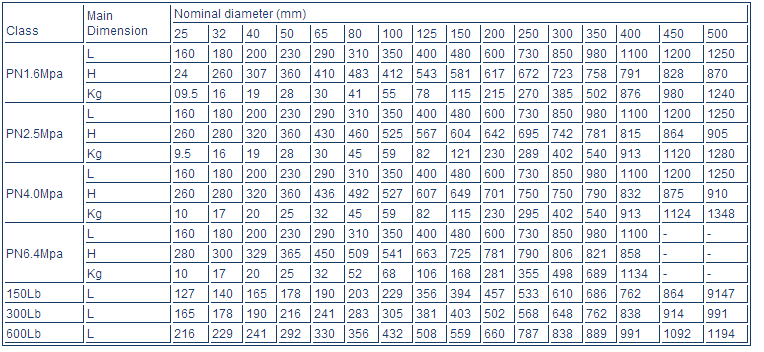

Connection dimension:
